Description
* If you choose a product WITHOUT Installation – our Radio Masters Service will contact you soon for information about the time for collection of the product.
* If you choose a product WITH Installation – our Radio Masters Service will contact you soon to reserve the date/time of this installation and the exact price. The installation price depends on the products to be installed and what kind of car you have.
Key attributes
Industry-specific attributes
Function: Waterproof, NIGHT VIEW, Parking Line
Other attributes
Screen Type: 4:3
AHD (Analog High Definition Technology)
* AHD technology adopts advanced Y/C signal separation and analogue filtering technology. Full HD 1080P level. * Clearer and advanced bright colour separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction. * Compatible with ordinary CVBS signals, compatible with analogue peripherals (including splitters, matrices, etc.) * Highly integrated AHD Front-end chip, 2020 Year New high-definition quality products.
AHD 5-inch Monitor
• Video signal: Supports AHD and CVBS signals. • Screen size: 5-inch screen • Format: 16:9 • Screen brightness: 500CD / M2 • Screen contrast: 300:1 • EWV screen: Support • Effective pixels of the screen: 1024*600 • Signal format: PAL / NTSC • Night vision image: automatic gain control, automatic white balance, automatic backlight compensation. • Power supply voltage: 12V-30V (Not recommended for trucks) • Power consumption: <= 6W • Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes • Support screen flip and mirror function • Support adjustment of brightness, contrast and saturation • Support English, Russian, Korean, Chinese, Japanese • Recommend using our AHD camera, the display effect is perfect, just like the effect of video demonstration.
Key Description
Long press +: Turn screen off or on Long press-: Switch video signal (AHD1 / AHD2) Click MENU: Open menu / back key Long press MENU: OK / Next option.
Support screen flip and mirror function Automatically display images when reversing: Enter “R”. Car mirror monitor display automatically rear view image.
Enter “N” or “D”. The Car Monitor doesn’t display an image or display the AUX Video image.

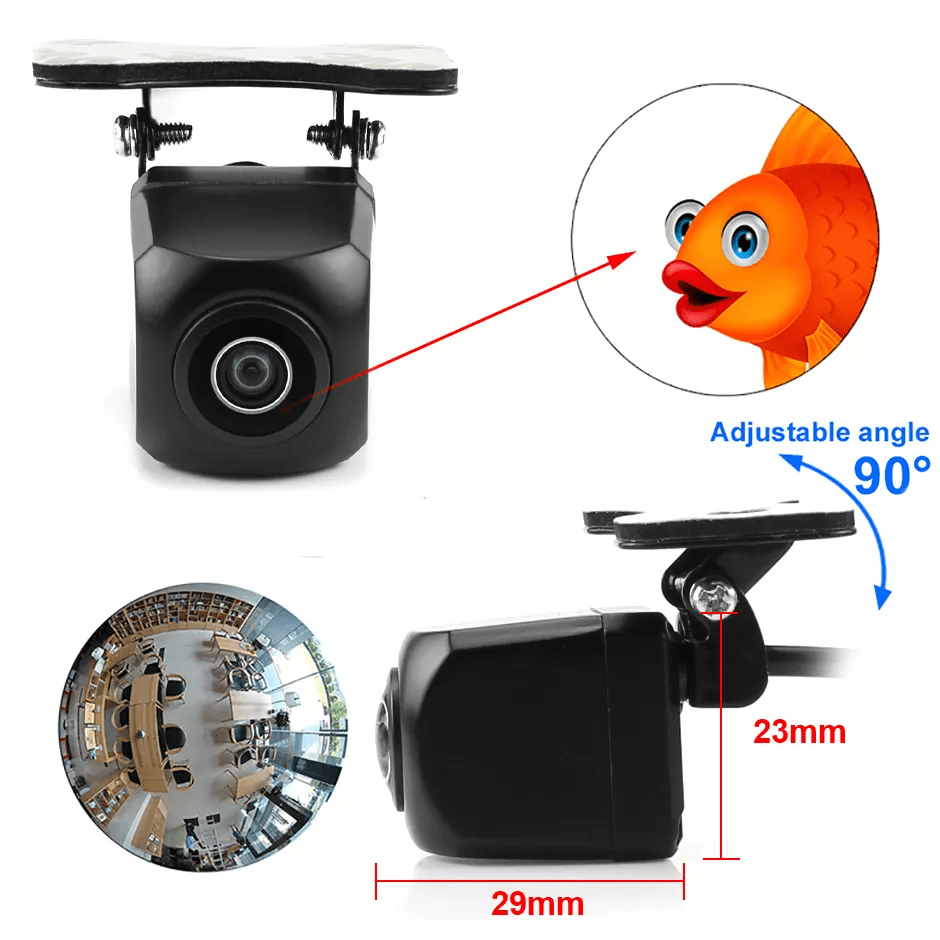

AHD rear cameras
Tips: The AHD camera only supports the AHD Monitor. And Support New Android 9.0. Android 9.1. Android 10.1 Car PC DVD Player. Before buying, Please check the Android unit that supports AHD Video Signal !!! AHD Car Camera: • AHD Sony/OV225 imaging sensor. • Video output: AHD Video Signal (1280*720P) • High-definition and 170 degree wide viewing angle. like as fisheye. • Support NTSC/PAL Video system. • High grade of waterproofing: IP68. • Low-light Level Night Vision, 15m visible distance for the night. • 6M RCA Video connector. • New body material: High-quality stainless steel, aluminium alloy. Anti Scratch. Waterproof.
Installation Guide
