Description
* If you choose a product WITHOUT Installation – our Radio Masters Service will contact you soon for information about the time for collection of the product.
* If you choose a product WITH Installation – our Radio Masters Service will contact you soon to reserve the date/time of this installation and the exact price. The installation price depends on the products to be installed and what kind of car you have.
Key attributes
Industry-specific attributes
Function: Waterproof, NIGHT VIEW, Parking Line
Other attributes
Screen Type: 4:3
AHD (Analog High Definition Technology)
That technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analogue transmission lines; it adopts advanced Y/C signal separation and analogue filtering technology, which can effectively reduce colour noise in the high-frequency region and image reduction. better. Compared with the traditional CVI signal, AHD’s surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level. AHD-M(TVL) Features: • Clearer and advanced bright colour separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction. • transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters • zero-delay front-end data is not encoded and compressed to the back end, fully real-time, high fidelity • compatible with ordinary CVBS signals, compatible with analogue peripherals (including splitters, matrices, etc.) • Highly integrated AHD front-end chip, high-definition quality products.
Video signal
Supports AHD and CVBS signals. • Screen size: 7-inch screen • Format: 16:9 • Screen brightness: 500CD / M2 • Screen contrast: 300:1 • EWV screen: Support • Effective pixels of the screen: 1024*600 • Signal format: PAL / NTSC • Night vision image: automatic gain control, automatic white balance, automatic backlight compensation. • Power supply voltage: 12V-30V (Not recommended for trucks) • Power consumption: <= 6W • Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes • Support screen flip and mirror function • Support adjustment of brightness, contrast and saturation • Support English, Russian, Korean, Chinese, Japanese • Recommend using our AHD camera, the display effect is perfect, just like the effect of video demonstration.
IPS Screen The IPS screen has a large viewing angle. Compared to other types of screens, the IPS screen looks different from the side, and its colour is not much different from the front, as shown in the following figure.
This monitor supports mirrored image display. You can change the rear view image displayed by the rearview camera to the front view image. Convenient display installation.
Tips: The AHD camera only supports an AHD Monitor. AHD Car Camera: • AHD 2053 imaging sensor. • Video output: AHD Video Signal (1280*720P or 1920*1080P Optional) • High-definition and 170 degree wide viewing angle. Fisheye lens • Support parking reference line switch on/off • Support NTSC/PAL Video system. • High grade of waterproofing: IP68. • Low-light Level Night Vision, 15m visible distance for the night. • 6M RCA Video connector. • New body material: High-quality stainless steel, aluminium alloy. Anti Scratch. Waterproof.
Support parking reference line switch on/off Some monitors come with a parking reference line that coincides with the camera’s reference line and interferes with the line of sight.
Installation Guide

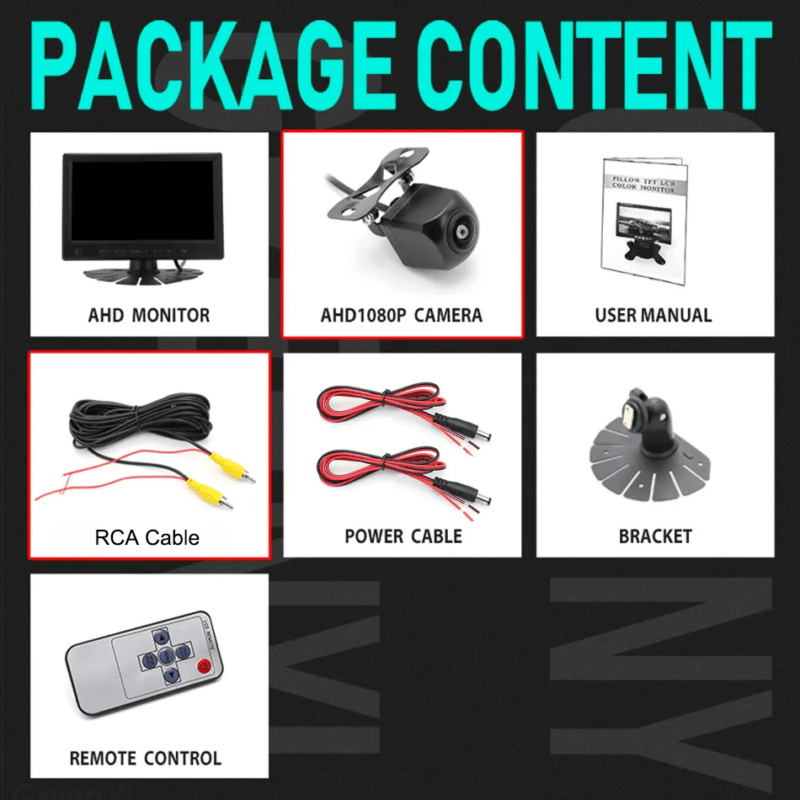

Packing & Delivery
1 x Install bracket
